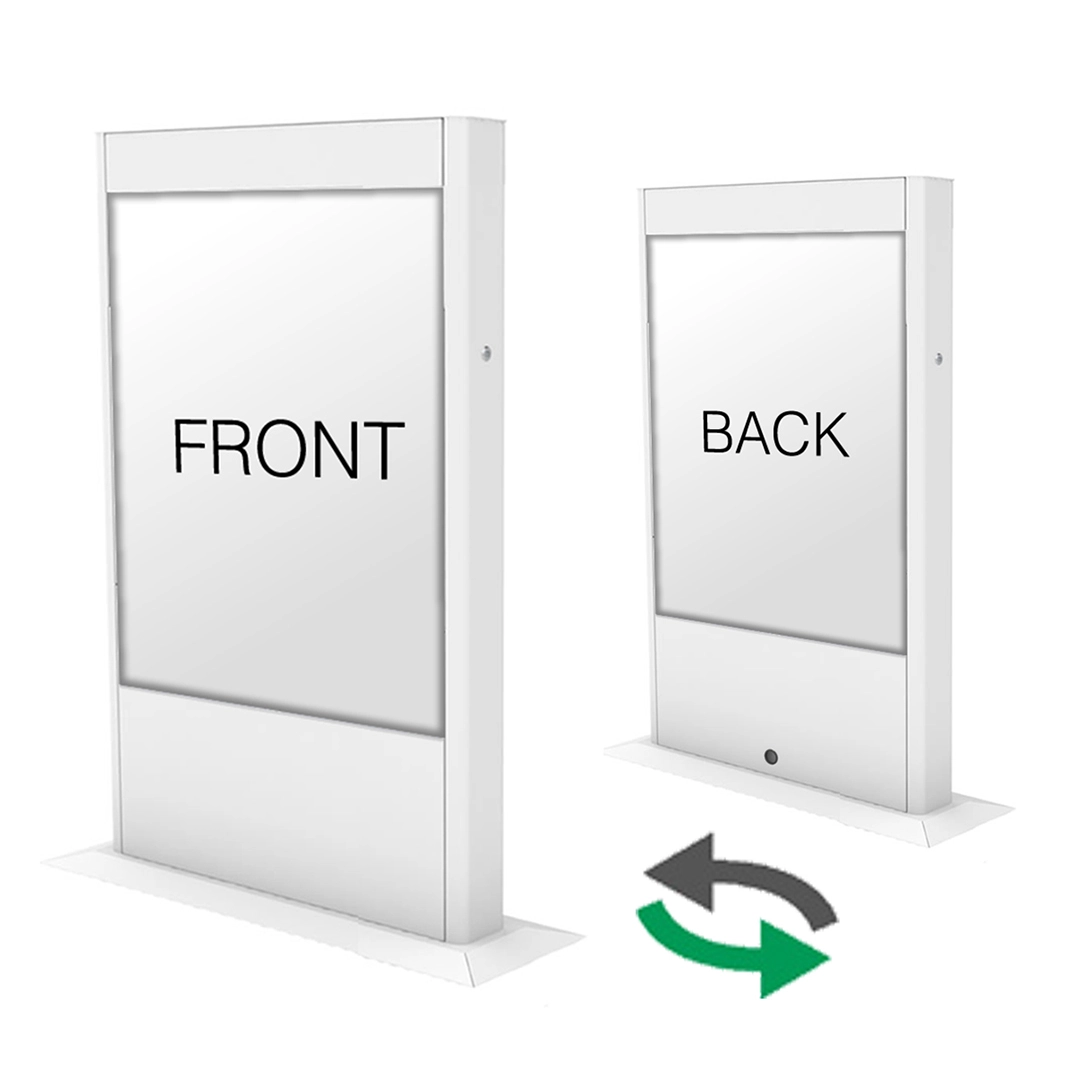

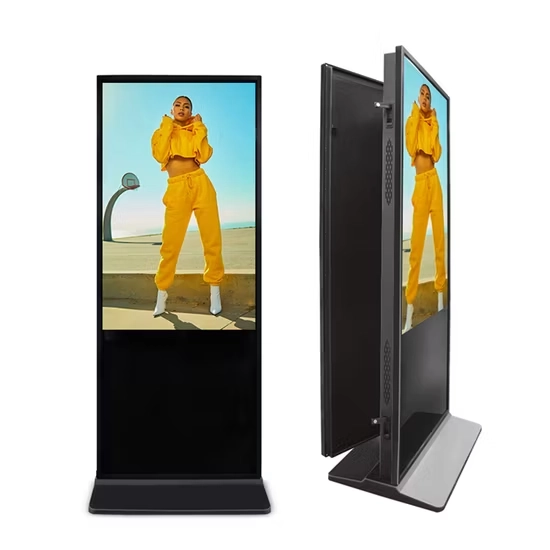

SBA035 50-Inch Double Sided Digital Signage(Touch/Non-Touch)

The Suitch On SBA035 50-Inch Double-Sided Digital Signage is a cutting-edge display solution designed for retail, corporate, hospitality, and public spaces. Its double-sided LED panel design allows content to be displayed on both sides, maximizing engagement and visibility in busy environments.

Equipped with a Full HD LED panel, 10,000:1 contrast ratio, and 16:9 aspect ratio, the SBA035 delivers vibrant, sharp visuals that capture audience attention. The sturdy MS Iron frame and 5mm toughened glass provide durability and safety, making it suitable for high-traffic areas.

Available in Touch and Non-Touch variants, this signage operates on a 1GB RAM + 4GB storage Android system, ensuring smooth multimedia playback. Built-in speakers provide clear audio, making the SBA035 an all-in-one solution for modern interactive digital signage needs.

⚙️ Technical Information

Model: SBA035
Brand: Suitch On
Product Type: Double-Sided Digital Signage (Touch/Non-Touch)

🖥️ Display Specifications

  • Display Size: 50 Inches
  • Display Type: LED Backlit Panel
  • Resolution: 1920 × 1080 (Full HD)
  • Contrast Ratio: 10,000:1
  • Aspect Ratio: 16:9
  • Brightness: 450 nits (typical)
  • Viewing Angle: 178° (H/V)
  • Response Time: 6–8 ms

Touch Panel (Touch Model Only)

  • Touch Type: Capacitive / IR Multi-Touch
  • Touch Points: 10
  • Touch Accuracy: ±1mm
  • Touch Glass: 5mm Toughened Anti-Glare Glass
  • Touch Durability: 50 million touches

🧠 System Specifications

  • Operating System: Android 7.1 / 9.0 (Upgradable)
  • Processor: Quad-Core ARM Cortex
  • RAM: 1GB
  • Storage: 4GB
  • Wi-Fi: Supported
  • LAN Port: Optional
  • App Support: Compatible with Android media and CMS applications

🔊 Audio & Multimedia

  • Speakers: Built-in (2 × 10W)
  • Audio Output: 3.5mm / HDMI
  • Supported Media Formats: MP4, AVI, MKV, MP3, JPEG, PNG, PDF

🔌 Connectivity Ports

  • USB Ports: 2
  • HDMI Input: 1
  • VGA Port: 1
  • LAN Port: 1 (Optional)
  • Audio In/Out: Yes

🧱 Build & Design

  • Frame Material: MS Iron Frame
  • Front Glass: 5mm Toughened Glass
  • Design Type: Double-Sided Freestanding Display
  • Color: Black (Customizable)
  • Mounting Type: Floor-Standing

⚙️ Power & Environment

  • Voltage: 100–240V AC, 50/60Hz
  • Power Consumption: ≤150W
  • Operating Temperature: 0°C – 45°C
  • Operating Humidity: 10% – 90% RH

📦 Package Includes

  • 1 × 50-Inch Double-Sided Digital Signage
  • 1 × Power Cable
  • 1 × Remote Control
  • 1 × User Manual

🛡️ Warranty

  • 1 Year Manufacturer Warranty (against manufacturing defects)
.

Frequently asked question

1. What is SBA035 50-Inch Double-Sided Digital Signage?

SBA035 is a 50-Inch Double Sided Digital Signage that's a 50-inch digital signage solution designed with screens on both sides. It can be used to display advertisements, videos, announcements, information, menus and promotional content from two viewing directions.

2.  Is SBA035 in Touch and Non-Touch versions?

Yes. SBA035 is available in both Touch and Non-Touch configurations, allowing businesses to choose the option according to their requirements.

3.  What is the screen size of SBA035?

The SBA035 features a 50-inch display providing an clear viewing area, for digital content.

4. What is the advantage of sided digital signage?

A sided display allows content to be viewed from both sides. This helps businesses reach people approaching the signage from directions using a single display unit.

5. Where can SBA035 be used?

SBA035 can be used in hotels, shopping malls, retail stores, showrooms, corporate offices, hospitals, airports, educational institutions, exhibitions, restaurants and other commercial spaces.
