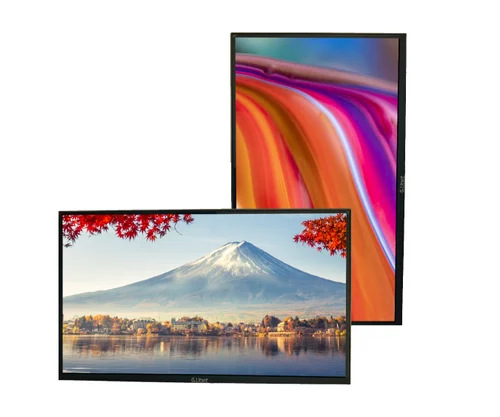

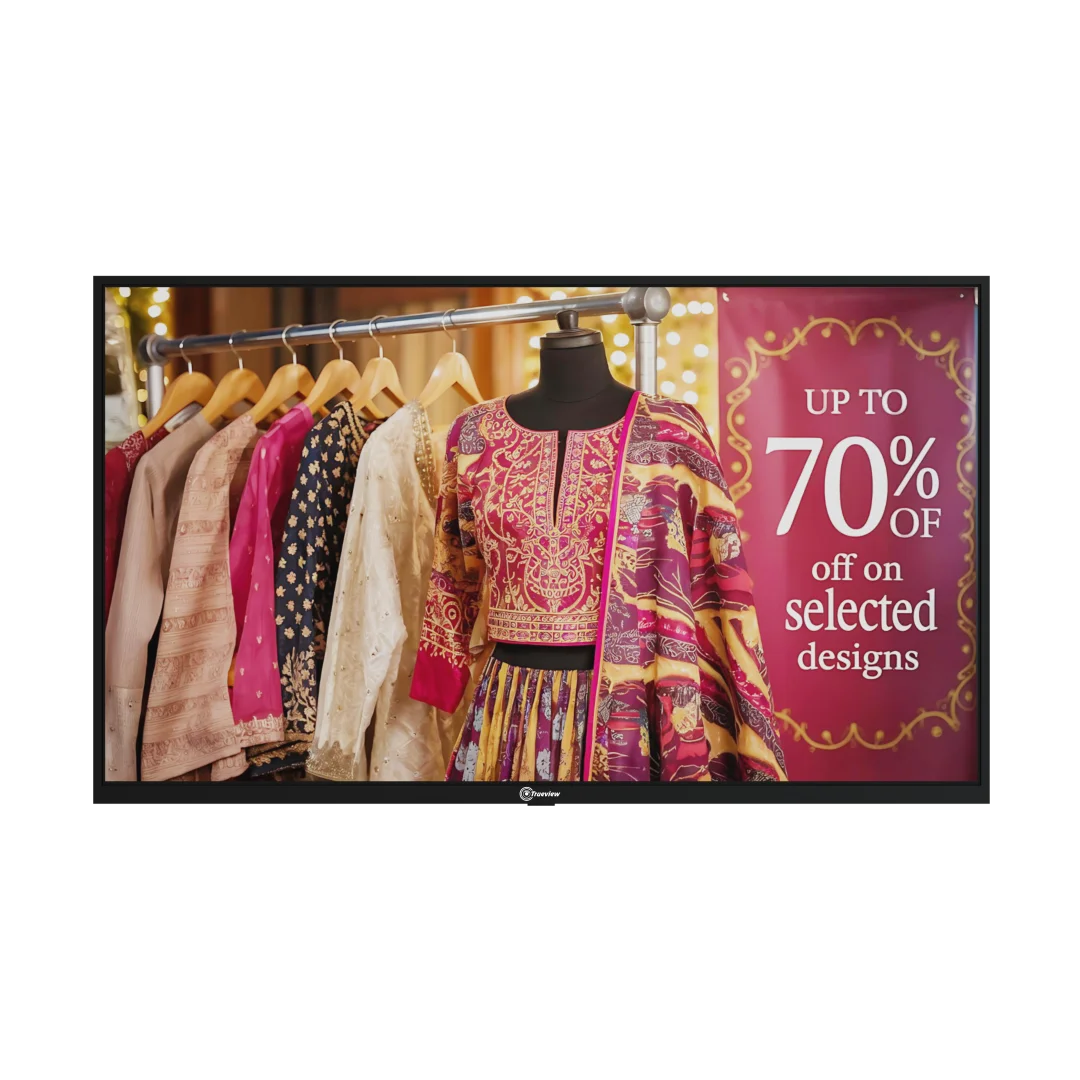

SBA015 60-Inch Wall Mount Digital Signage(Touch/Non-Touch)

The Suitch On SBA015 60-Inch Wall Mount Digital Signage is a high-impact display solution engineered for retail environments, hotels, corporate offices, educational institutions, and public areas.
With a massive 60-inch LED panel, vivid 10,000:1 contrast ratio, and a modern frameless design, it delivers crisp, dynamic visuals for advertising, branding, and interactive information displays.

Available in both Touch and Non-Touch versions, the SBA015 combines performance and durability — featuring a 5 mm toughened glass front and a heavy-duty MS Iron frame.
Built-in speakers, dual USB ports, and smart playback options make it an all-in-one solution for modern digital communication.

⚙️ Technical Information

Model: SBA015
Brand: Suitch On
Type: Wall Mount Digital Signage (Touch / Non-Touch)

🖥️ Display Specifications

  • Display Size: 60 Inches
  • Display Type: LED Panel
  • Aspect Ratio: 16:9
  • Contrast Ratio: 10,000:1
  • Resolution: Full HD 1920 × 1080 (Optional 4K Upgrade)
  • Brightness: 400–450 nits
  • Viewing Angle: 178° (H/V)
  • Response Time: < 8 ms

🧠 System Specifications

  • RAM: 1 GB
  • Storage: 4 GB (Expandable via USB)
  • Processor: Quad-Core (Android version)
  • Operating System: Android / Plug & Play Media System (Customizable)

🔊 Audio & Multimedia

  • Speaker: Yes (Built-in Stereo Speakers)
  • Supported Video Formats: MP4, AVI, MKV, MOV
  • Supported Image Formats: JPEG, PNG, BMP
  • Supported Audio Formats: MP3, AAC, WAV

🔌 Connectivity

  • USB Ports: 2
  • HDMI Port: 1 (Optional)
  • LAN / Wi-Fi: Optional (for smart models)
  • SD Card Slot: Optional

🧱 Build & Design

  • Frame Material: MS Iron (Powder-coated finish)
  • Front Glass: 5 mm Toughened Glass
  • Mount Type: Wall Mount Design
  • Body Color: Matte Black (Custom colors available)
  • Installation: Wall Bracket Mount (included)

⚙️ Power & Environment

  • Input Voltage: 100 – 240 V AC (50/60 Hz)
  • Power Consumption: ≤ 100 W
  • Operating Temperature: 0 °C – 50 °C
  • Operating Humidity: 10 % – 90 % RH (non-condensing)

🧰 Touch (Optional)

  • Touch Type: Capacitive 10-Point Touch
  • Response Time: < 10 ms
  • Durability: 50 Million Touches Lifespan

📦 Package Includes

  • 1 × Suitch On SBA015 Digital Signage Unit
  • 1 × Wall Mount Bracket Set
  • 1 × Power Cable
  • 1 × Remote Control (for Non-Touch model)
  • 1 × User Manual

🛡️ Warranty

  • 1 Year Manufacturer Warranty (against manufacturing defects)
.

Frequently asked question

1. What is a 60-Inch Wall Mount Digital Signage?

A 60-Inch Wall Mount Digital Signage is a screen that can be hung on a wall to show videos, pictures, ads, news, menus, and other digital items.

2. Is the 60-Inch Wall Mount Digital Signage in touch and non-touch versions?

Yes. The 60-Inch Wall Mount Digital Signage can come in both touch and non-touch models, depending on the needs of the application.

3. Where can the 60-Inch Wall Mount Digital Signage be used?

The 60-Inch Wall Mount Digital Signage can be used in stores, hotels, restaurants, hospitals, offices, schools, colleges, showrooms, banks, malls, reception areas, and other business spaces.

4. What can be displayed on the 60-Inch Wall Mount Digital Signage?

The 60-Inch Wall Mount Digital Signage can show videos, pictures, ads, promotional material, digital menus, announcements, presentations, directions and other informational items.

5. What is the advantage of the touch version?

The touch version lets people interact directly with the 60-Inch Wall Mount Digital Signage. It is useful for directories, product details, self‑service tools, presentations and engaging customers.
